| GE BMY Wiring | Rate Topic |
| Author | Post |
|---|
| Posted: Wed Nov 4th, 2009 06:33 am |
|
1st Post |
|
Paul Khoury Guest
|
I checked out the wiring diagrams for BMY, but I have no idea which wire is which. Does anyone know the resistance that should be correct between each set, so I know what's being hooked up where? The fan starts (or used to start) about medium on speed one, speed two makes a lot of noise and goes nowhere, and speed three spins in reverse on medium.
|
|||||||
| ||||||||
| Posted: Wed Nov 4th, 2009 07:52 am |
|
2nd Post |
|
Erich Martin Guest
|
I thought I goofed on mine, but here is what I did. http://afca.mywowbb.com/attachment.php?id=19362
|
|||||||
| ||||||||
| Posted: Wed Nov 4th, 2009 09:06 am |
|
3rd Post |
|
Paul Khoury Guest
|
This sorta makes sense, but I don't remember any wires being color coated per se. As for the speed coil, there are 6 wires total - from what it looked like originally, 2 going into the tap, and then 4 going to the positions for speeds 1, 2, 3. How would I be able to figure out which wires from the stator are 1, 2, 3?
|
|||||||
| ||||||||
| Posted: Wed Nov 4th, 2009 06:03 pm |
|
4th Post |
|
Ralph Bliss Guest
|
Higher resistance = lower speed
|
|||||||
| ||||||||
| Posted: Thu Nov 5th, 2009 03:09 am |
|
5th Post |
|
Erich Martin Guest
|
paul, look at the pic of the coil, do your wires come out in sequence like mine?, they would probably be the same, no reason for GE to change. http://afca.mywowbb.com/attachment.php?id=19395 Last edited on Thu Nov 5th, 2009 03:12 am by Erich Martin |
|||||||
| ||||||||
| Posted: Thu Nov 5th, 2009 05:24 am |
|
6th Post |
|
Nick Rodnicki Jr Guest
|

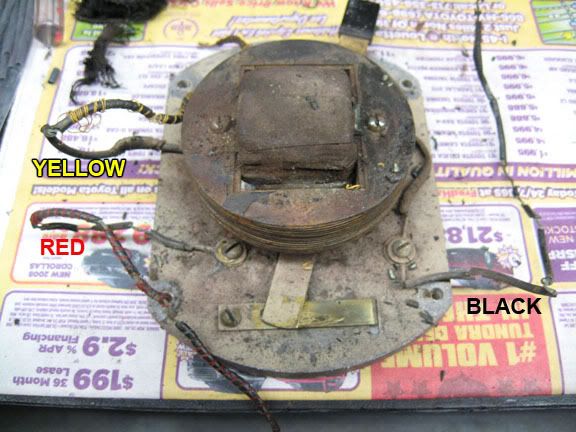

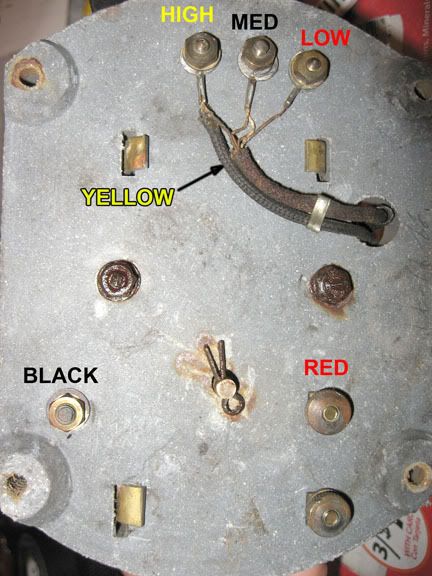

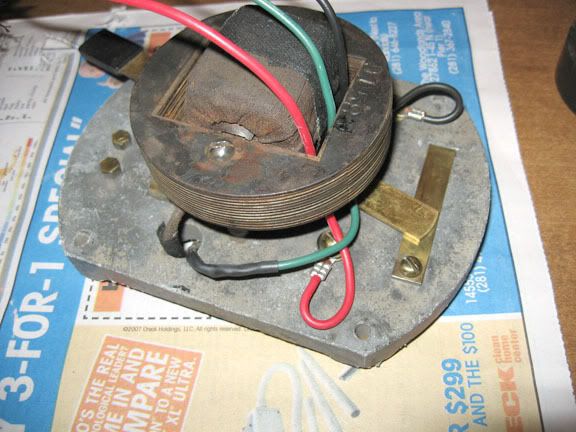

Erich, Good diagram. Back in the summer of 2008 I posted text and photos for GE BMY wiring from a restoration I was working on. The posting is no longer available. I hope that post was archived. Here's some of my photos from the original post I hope they are helpful although it is dependent on what type of speed coil and resistor set-up you have:     Rejuvenated switch and coil. Nick
|
|||||||
| ||||||||
